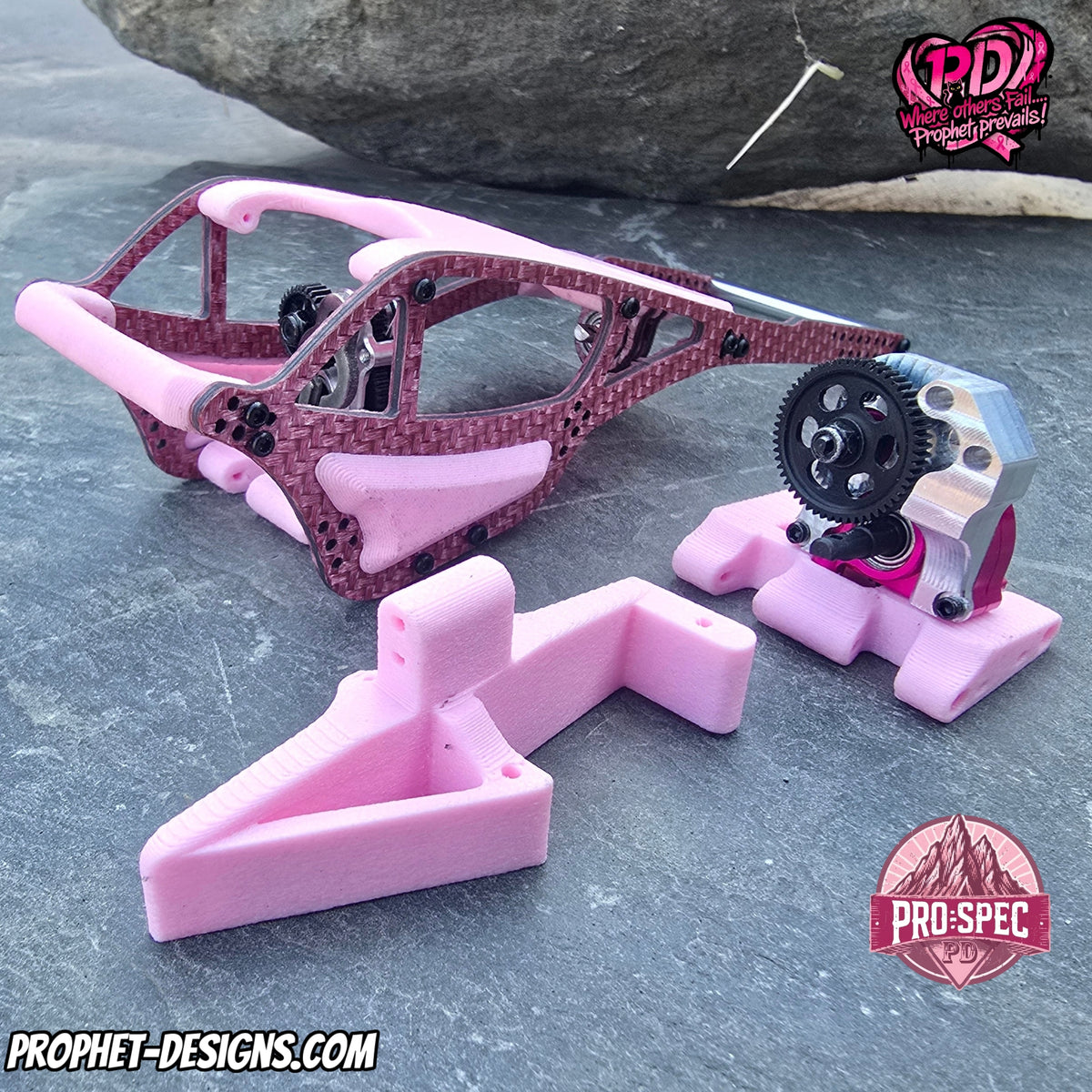

Pretty in Pink Pro-Spec

Featuring a 177mm wb and a 18 degree angled skid , carrier bearing and extreme weight forward design the Pro-Spec is the ultimate point and shoot chassis kit!

What all is Included in this kit ?

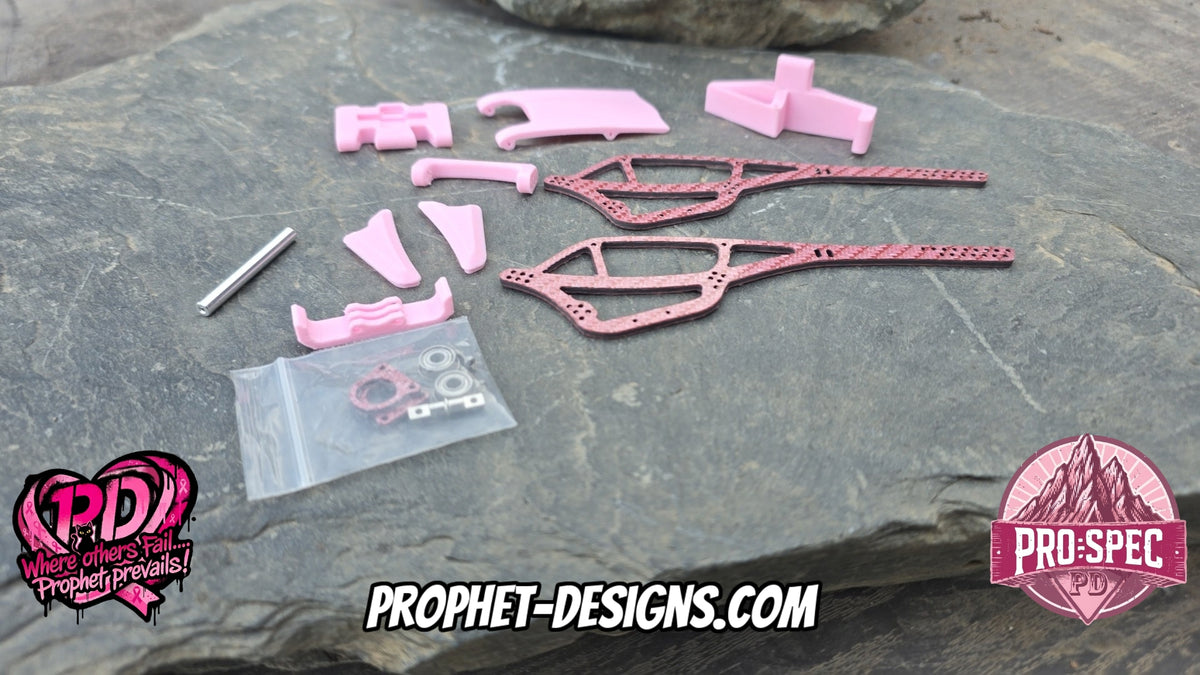

Kit includes:

2 - rails

1- skid

1-Pro Spec Slant boa

1 front brace

1- rear alloy brac

1 set of side panels

1- roof

1- Pro-spec carrier

1- set of titanium links and stainless pivot balls (drag axle specific)

Setup recomdations:

Shocks:

The pro spec is designed around the proline 50mm big bores in the rear and a set of 34mm big bores on the front. I reccomend those shocks as those are what I designed the geometry around that being said its ultimately up to you to decide what works!

Has been tested with 39mm up front as well can accommodate it but that's probably the longest I'd go in the front.

Esc & Rx :

You'll need a small formfactor esc Bktt or similar and a micro rx (gt5,avatar,nb4,radiolink) as the cockpit is limited on space . You may need to shorten wires depending on your setup

Motor & Mount:

Small can 1212 motors

Nod24.dws or stock style transmissions

**Nod24 & dws addon sold separately **

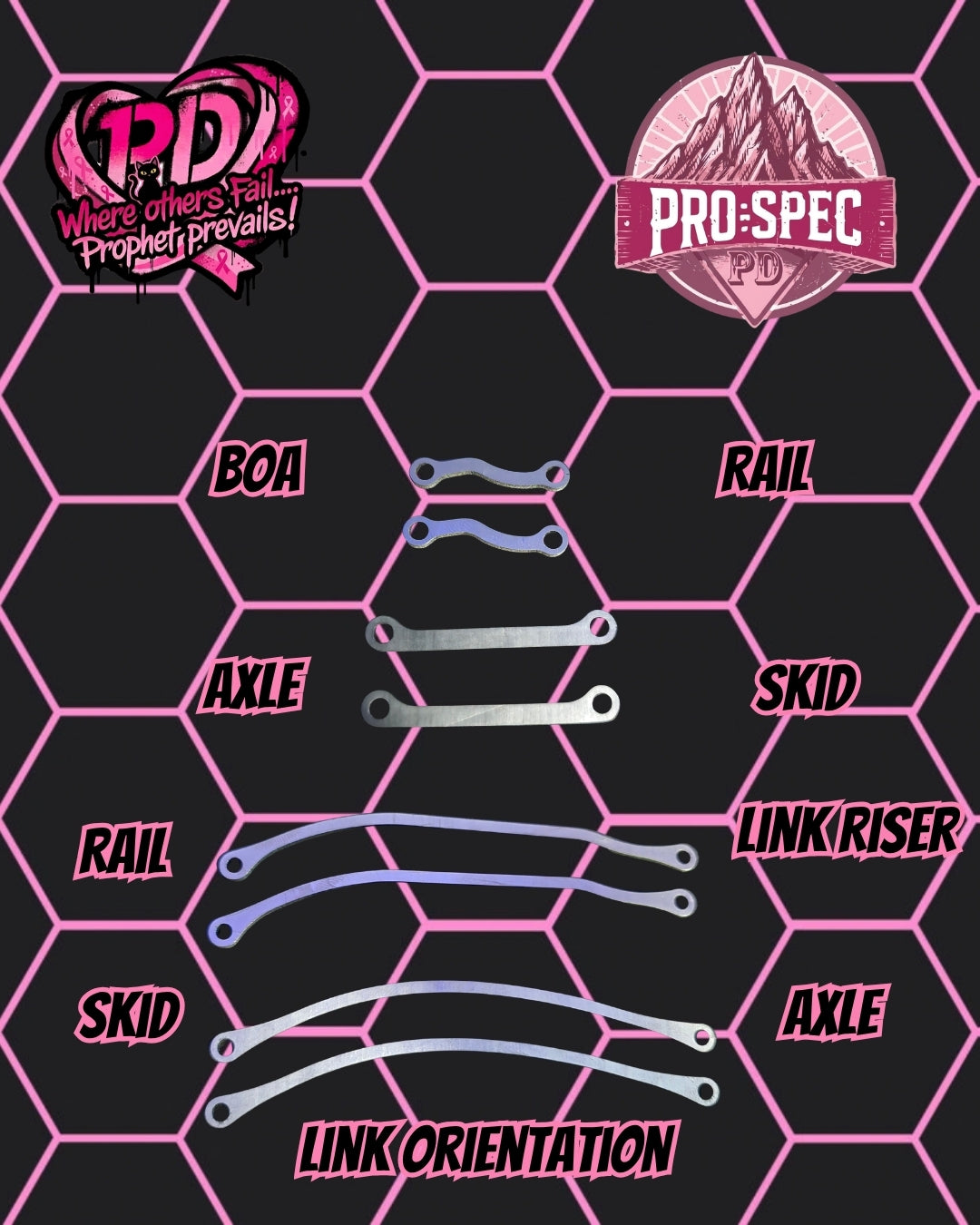

Links:

The link set is designed for use with a rampcrab adjustable rear link riser to get the pinion angle desired. The included linkset is designed for drag axle setups A addon for 4ws is available separately.

Driveshafts and carrier setup :

Requires 2 deadbolt front drive shafts and 1 c10 rear

( Carrier Can be tiled to fix any binding)

*Please assemble with care *

Printed parts are not indestructible so do not put excessive force on small parts during assembly. I hold no liability for Parts broken from brute force or improper assembly. If a part breaks or is of poor construction please send a email with your order number and we can see if it is eligible for replacement

Contact email : prophetdesigns.sales@gmail.com

 This kit is suggested for intermediate to expert builders due to the custom nature of the product.
